HSQ-50Fe loudspeaker kit for 2 x SQ-50 H / SQ-50 L / MB-50
All electronic / electrical parts needed for two loudspeakers.
Very important during the covid-19 pandemic:
We cannot, unfortunately, deliver our products to all coutries and regions with our normal shipping company, PostNord. They use storage on passenger airlines to ship packages, and as many passenger flights are cancelled during the pandemic, they cannot deliver packages to many countries until the airline traffic becomes normal again.
There is a list of coutries to which they can ship packages, by air, boat, train and trucks. This, however, also affects transportation time a lot. We sent a package to New York, U.S. and the normal shipping time is 4-6 workdays, but it took 1½ months to reach our customer, and a package to southern France (normally 3 workdays) took three weeks.
So, here is the list to which package can be sent by PostNord, but be prepared to wait a while:
https://www.postnord.se/en/about-us/how-the-coronavirus-is-affecting-our-deliveries
If your country is not in the list, and we still handle the package over to PostNord, they will keep it in storage and ship it when airlines "open up". And that can take quite some time.

There is an option: We can use DHL for shipping, they use their own airplanes and can ship to most parts of the world without problems.
However their shipping costs are much higher. So, if you want to know the total cost incl shipping by DHL, contact us by
email and we will check with DHL and tell you the total cost.
The prices incl shipping on our site only apply when shipping by PostNord..

Updated 2020-06-30
HSQ-50Fe consists of two woofers, two tweeters, ready-built filters with self re-setting overload protection and screw terminals, 10 m cable and two spring loaded contacts plus cutting template, drawing, cutting template and easy-to-follow instructions for the speaker model you choose to build.
The kit includes everything you need, except the wood parts, glue and screws:



LS 18532. 8 Ohm Hi-fi woofer / midrange with fantastic sound quality.
Stiff, exponantially shaped PP cone with mid/high dome (-3dB: 10 kHz).
Long travel coil, inverted rubber surround. Very well damped cone for a neutral, uncoloured sound.
RMS 50 W, music power 80 W.

LST 9520. 8 Ohm Hi-Fi dometweeter, with linear frequency response and very low distortion.
RMS 50W, music power 100W.
In fact, one of the best tweeters we have ever heard.

HK-8, loudspeaker cable, 10 m. Enough for both internal wiring and two 3.5 m loudspeaker cables.
Plus wire indicated by black line. 		High quality filters:
First order steepness for optimum stereo image. Conjugate link at the input to stabilize sensitive amplifiers.
Aircoil, ceramic  resistors, high grade polypropylene capacitors.

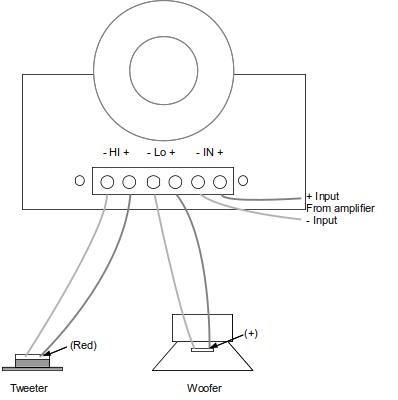

On the back of the PCB the text IN +/- (input from amplifier), LO +/- (woofer), HI +/- (tweeter) shows how to connect to the screw terminals.
Electronic, self resetting fuse. When tripped, the volume drops to protect the loudspeaker. Turn off you amp for half a minute and everything is back to normal again.
Spring loaded terminals. Strong grip.
Easily mounted from outside the box.

Connection:


When you order (by email, click here) state what speaker model (SQ-50L, H or MB-50) you want to build, so we can supply the right instructions along with the kit.
For shipping, our shipping company needs your name, full address and phone number.
We will reply with an estimated delivery time, and if you agree, a PayPal Money Request.
PayPal accepts Visa, MasterCard, Discover, and American Express (and, of course, PayPal balance).

All prices are the total cost you pay to us, including shipment.
Important: Prices only valid for payments received by us no later than March 31 2020.
Then, due to raised costs, we will have to adjust our pricelist.

EU countries, VAT included: 3075 SEK *
Norway, Iceland, Faroe Islands, Greenland, Åland: 2569 SEK
Europe 1, see list below: 2572 SEK
Europe 2, see list below: 2584 SEK
USA, Canada: 2773 SEK**
Rest of the world where PayPal works, like Australia, New Zealand, countries in Central and South America and most African and Asian countries: 2800 SEK

Approximate cost in other currencies, exchange rate as of 2019-03-05:
*)   290 Euro, 250 GBP, 2168 DKK,
**)  297 USD, 396 CAD
***) 423 AUD, 441 NZD

Europe I

French Guyana, Guadeloupe, Martinique, Réunion, Mayotte, Gibraltar, Isle of Man, Channel islands, Monaco, Montenegro, San Marino, Vatikan city

Europe II

Albania, Andorra, Bosnien-Hercegovina, Georgia, Kosovo, Kroatia, Macedonia, Moldava, Russia, Switzerland, Serbia, Ukraina, Belarus

Tell us what model (SQ-50H, SQ-50L, SQ-50HVA or MQ-50) you want to build, and we will send the appropriate cutting template, drawing and instructions with your package. Wait for these paper documents, the drawings and cutting templates online are deliberately false, so do NOT cut any parts in advance.

Approximate delivery time depends on where you live:
EU countries: 2 - 4 workdays
Non-EU european countries 3 - 6 workdays (customs clearance often needed)
The United States, Canada, Australia and New Zealand: Typically one week.
Central and South America, most parts of Asia and Africa: 1 - 3 weeks*

*Packages to countries outside Europe are shipped by air from Sweden to your country, so that part of the shipping is always quick. The delivery time inside your country depends on the efficiency of your local distribution company.
When you send us your order we reply with order confirmation / delivery time and a PayPal Money Request.
After payment it can take up to two workdays before we get confirmation from Paypal that the payment is on its way to us and we are safe to ship the package.
As soon as your package is shipped we will send the tracking number to your email address.
When you order, it is important that we get your name, full address, phone number and email address so that the shipping company can communicate with you and get the package delivered as quickly as possible to your address.
